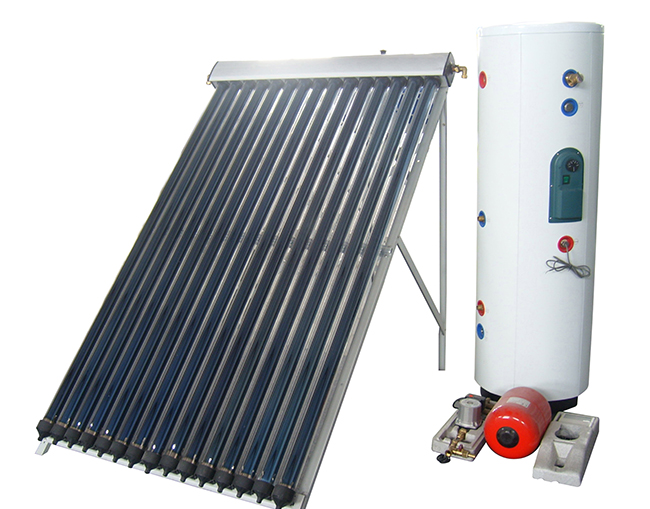

Split Pressurized Solar Heating System

The split Solar Heating System is specially designed for residential house and building .Such System separates the solar heat collecting unit and the water tank. The collector can be installed at the sunny facet of a building , such as roof or sidewall. The water tank then can be installed in house with convenience. This makes it possible and easier to install the system aesthetically with original building.

Features:

●Module Design with flexible system configuration. Easy installation and integration with exsiting building.

●Intelligent control of the system operation with the system temperature monitoring.

●Dual Anti-Freeze Protections with thermal media in the circulation pipe and anti-freeze circulation control.

●Possible to integrate with current heating system(electric or gas based) to a hybrid system to provide water heating and floor heating system.

●Go Green on Sunny Day. Take the full advantage of Mother Nature to enjoy free heating.

Specifications:
1)      Water tank material(inner): Stainless steel SUS 304 2B  / Stainless Steel 316 L
2)      Manifold casing: Aluminum alloy
3)      Manifold: Red copper
4)      Collector frame: Aluminum alloy/galvanized steel
5)      Vacuum tube: borosilicate glass 3.3 with tri-element coating
6)      Vacuum tube size: 58mm*1.8m

7)      Working station with WILO pump
8)      Working pressure: MAX. 6 bar

9)      Tank Capacity: 100 Liter to 500 Liter

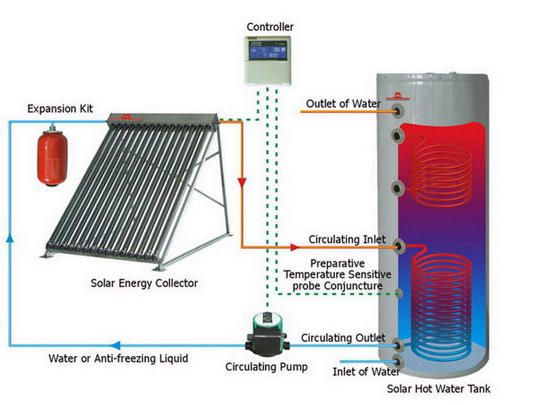

Working Principle:

The pressure pump connects the circulation system between the Solar Heat Absorption Collector and the Water Tank. When the temperature difference between them reaches the trigger point , the system automatically starts circulation and naturally provides the heating water.
