Pre-heater Pressure Solar Water Heater

Detailed Information

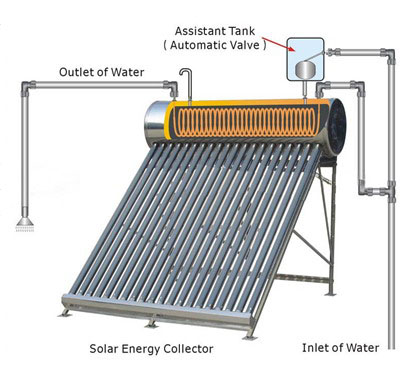

Pre-heated Solar Water Heater is our newest products,  it adopts the copper coil as the heat exchange, besides this,  it improves the problem of traditional solar water heater. Such as hot water limited, heat for long time,and so on .The technology we first research "heat for twice" is successful, let the connection of high temperature high effect and hot water fast circulation perfect.

Specification:

1. Material of Inner Tank: SUS304-2B food-level Stainless Steel with 0.4mm thickness.

2. Material of Outer Tank: imported color steel

3. Copper Coil: the diameter is 12mm, thickness is 1 mm

4. Heat Preservation: imported polyurethane form with 55mm thickness.

5. Tube Specification: 58mm x1800mm/47mm x 1500mm

6. Material of Support: galvanized steel plate with plastic spraying.

7. Tank capacity from 100 Liter to 300 Liter

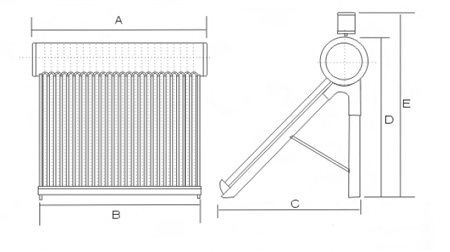

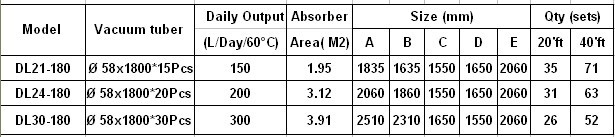

Technical Data
