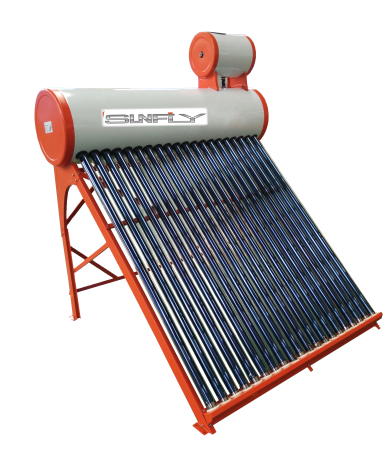

Specification:
1. Inner tank material: SUS304/2B, 0.41mm
2. Outer tank material: Colorful Steel / StainlessSteel
3.Frame material：Galvanized Steel / Stainless steel
4.Heat insulating layer: 50mm polyurethane foaming
5.Size of inner tank Ø360mm,Size of outer tank Ø460mm
6.Heat preservation: 72 hours
7.Hail resistance: 20-30mm
8.Standard pressure: 0.06 Mpa
9.Seal: silicone rubber polymer
10.Temperature heat: 45-95 degree Celsius
Technical Data sheet
|
Model
|
Tube Specification
|
Tube
|
Gross Absorber
|
Capacity
|

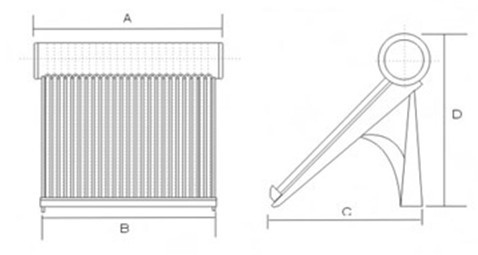

Size (mm)
|
|
Coating
|
Area( M2)
|
A
|
B
|
C
|
D
|
|
SFL-NP58/1800-8
|
Ø 58x1800*8Pcs
|
ALN-AIN-SS/CU
|
1.36
|
80 L
|
855
|
655
|
1550
|
1600
|
|
SFL-NP58/1800-10
|
Ø 58x1800*10Pcs
|
ALN-AIN-SS/CU
|
1.70
|
100 L
|
1005
|
805
|
1550
|
1600
|
|
SFL-NP58/1800-12
|
Ø 58x1800*12Pcs
|
ALN-AIN-SS/CU
|
2.04
|
120 L
|
1155
|
955
|
1550
|
1600
|
|
SFL-NP58/1800-15
|
Ø 58x1800*15Pcs
|
ALN-AIN-SS/CU
|
2.55
|
150 L
|
1380
|
1180
|
1550
|
1600
|
|
SFL-NP58/1800-18
|
Ø 58x1800*18Pcs
|
ALN-AIN-SS/CU
|
3.06
|
180 L
|
1610
|
1410
|
1550
|
1600
|
|
SFL-NP58/1800-20
|
Ø 58x1800*20Pcs
|
ALN-AIN-SS/CU
|
3.40
|
200 L
|
1760
|
1560
|
1550
|
1600
|
|
SFL-NP58/1800-24
|
Ø 58x1800*24Pcs
|
ALN-AIN-SS/CU
|
4.08
|
240 L
|
2060
|
1860
|
1550
|
1600
|
|
SFL-NP58/1800-25
|
Ø 58x1800*25Pcs
|
ALN-AIN-SS/CU
|
4.25
|
250 L
|
2135
|
1935
|
1550
|
1600
|
|
SFL-NP58/1800-30
|
Ø 58x1800*30Pcs
|
ALN-AIN-SS/CU
|
5.10
|
300 L
|
2510
|
2310
|
1550
|
1600
|
(The above data for reference only )
