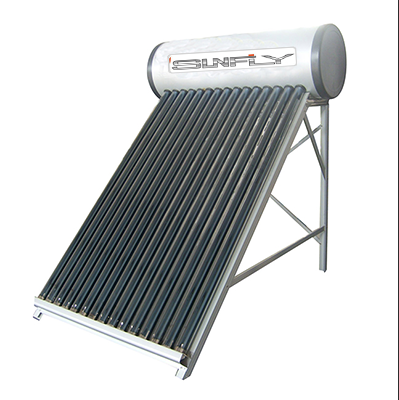

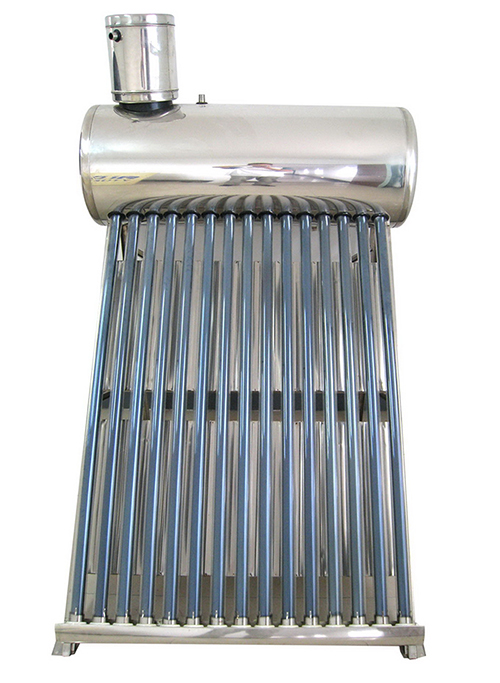

solar water heater (stainless steel)
1. Inner tankmaterial:SUS304/2B, 0.41mm
2. Outer tank material:SUS304/2B, 0.37mm
3.Framematerial：Stainless steel 201,1.5mm
4.Heat insulating layer:55mm polyurethane foaming
5.Size of inner tank Ø360mm,Size of outer tank Ø470mm
6.Pattern of water tank: Inflow side
7.Heat preservation: 72 hours
8.Hail resistance: 20-30mm
9.Standard pressure: 0.06 Mpa
10.Fastness: stainless steel screws
11.Seal: silicone rubber polymer
12.temperature heat: 45-95 degree Celsius
Technical Data sheet
|
Model
|
Tube Specification
|
Tube
|
Absorber
|
Tank
|
Qty (sets)
|
|
Coating
|
Area( M2)
|
Capacity
|
20'ft
|
40'ft
|
|
|
|
HT15-180
|
Ø 58x1800*15Pcs
|
AL-N-AL
|
1.89
|
150L
|
42
|
87
|
|
HT18-180
|
Ø 58x1800*18Pcs
|
AL-N-AL
|
2.27
|
180L
|
39
|
82
|
|
HT21-180
|
Ø 58x1800*21Pcs
|
AL-N-AL
|
2.65
|
210L
|
36
|
75
|
|
HT24-180
|
Ø 58x1800*24Pcs
|
AL-N-AL
|
3.03
|
240L
|
32
|
67
|
