Features:

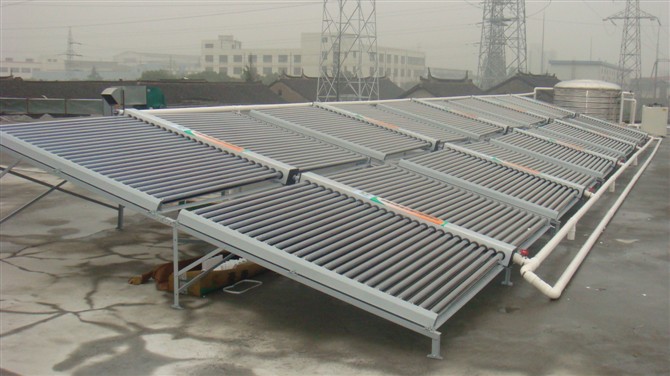

1. Configurable non-pressurized solar heat collector to meet variety needs from customers
2. Widely used for residential buliding, commercial facility such as industrial and public facilities.
3. Capable to maintain automatic water supply, constant temperature control, over heat protection and assistant electric heating , etc.
4. Economic investment with high usability and efficiency.
5. No contamination, no pollution with safety and sanitation.
Specification:
1. Water Tank Material:
Interior ------SUS304-2B Stainless Steel
Exterior------ Galvanized Steel
2. Thermal Vacuum Collecting Tube Size: Dia58mm*1800mm/ Dia47mm*1500mm
3. Thermal Efficiency: ≥52%
4. Thermal Loss:＜4%
5. Anti-freeze: -5 degree
6. Hail Resistance: 25mm
7. Life time:15 Years
|
Model
|
Absorber Area
|
Install Area
|
Packing No.
|
Volume
|
Gross Wight
|
|
Φ47×1500
|
2.5㎡
|
1100*1650
|
2
|
0.263M3
|
47.2㎏
|
|
Φ58×1800
|
3.5㎡
|
1400×1900
|
3
|
0.423 M3
|
92.0㎏
|
|
|

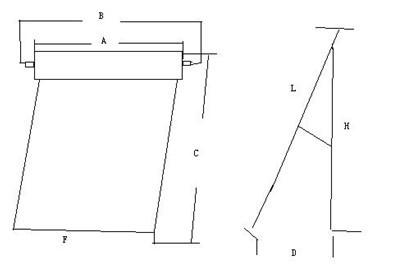

A(mm)
|
B(mm)
|
C(mm)
|
F(mm)
|
D(mm)
|
H(mm)
|
L(mm)
|
|
Φ47×1500
|
1665
|
1725
|
1670
|
1645
|
1100
|
1240
|
1670
|
|
Φ58×1800
|
1915
|
1975
|
1970
|
1895
|
1400
|
1440
|
1970
|
