Integrated heat pump machine

MODEL	KZR18-150D/N3A2	KZR18-200D/N3A2	KZR25-250D/N3D3	KZR25-300D/N3D3
Product Dimensions	φ510*1820 mm	φ570*1810 mm	φ640*1790	φ640*2010mm
Power supply	220-240V~/50Hz	220-240V~/50Hz	220-240V~/50Hz	220-240V~/50Hz
Tank volume	150 L	200L	250L	300 L
Heating capacity	1800 W	1800 W	2500 W	2500 W
Rated input power	465 W	465 W	628W	628W
Maximum input power(include electrical heating)	2685W	2685W	2890W	2890W
Maximum current	12.2A	12.2A	13.4A	13.4A
COP	3.87	3.87	3.98	3.98
Refrigerant	R134a	R134a	R134a	R134a
Compressor	GMCC	GMCC	Panasonic	Panasonic
Four-way valve	SHF-4	SHF-4	SHF-4	SHF-4
Throttling device	Electronic expansion valve	Electronic expansion valve	Electronic expansion valve	Electronic expansion valve
Evaporator	Hydrophilic aluminum foil	Hydrophilic aluminum foil	Hydrophilic aluminum foil	Hydrophilic aluminum foil
Wire controller	Digital screen, touch buttons	Digital screen, touch buttons	Digital screen, touch buttons	Digital screen, touch buttons
High/low pressure switch	2.8-2.3 MPa / 0.05-0.15MPa	2.8-2.3 MPa / 0.05-0.15MPa	2.8-2.3 MPa / 0.05-0.15MPa	2.8-2.3 MPa / 0.05-0.15MPa
Power cord specifications	3*1.5mm²	3*1.5mm²	3*2.5mm² without plug	3*2.5mm² without plug
Heating rate	39 L/h	39 L/h	54 L/h	54 L/h
Rated outlet water temp	55 ℃	55 ℃	55 ℃	55 ℃
Max outlet water temperature（heat pump mode)	70 ℃	70 ℃	70 ℃	70 ℃
Ambient temperature	﹣7～43 ℃	﹣7～43 ℃	﹣7～43 ℃	﹣7～43 ℃
Waterproof grade	IPX4	IPX4	IPX4	IPX4
Noise	≤48 dB(A)	≤48 dB(A)	≤52 dB(A)	≤52 dB(A)
Housing Material	Powder coated galvanized steel	Powder coated galvanized steel	Powder coated galvanized steel	Powder coated galvanized steel
Water tank	Tank with enamel coating	Tank with enamel coating	Tank with enamel coating	Tank with enamel coating
Inlet and outlet pipe dimensions	G1/2"	G1/2"	G3/4"	G3/4"
Heat exchanger type	External double copper pipe	External double copper pipe	External double copper pipe	External double copper pipe
Built-in pressure protection	0.8MPa	0.8MPa	0.8MPa	0.8MPa
Auxiliary electric heating	2000 W	2000 W	2000 W	2000 W
Accessory Bag	one G1/2 relief valve、one pipe adapter、 Manual	one G1/2 relief valve、one pipe adapter、 Manual	one G3/4 relief valve、Manual	one G3/4 relief valve、Manual
Packing Dimensions(L x W x H) （carton and pallet）	600*585*2030 mm	710*680*1990mm	740*740*2000 mm	740*740*2220 mm
Net Weight	85 Kg	112 Kg	119kg	134kg
Operating temperature	﹣7～43 ℃	﹣7～43 ℃	﹣7～43 ℃	﹣7～43 ℃
Loading quantity 40HQ	57 pcs	51 pcs	48 pcs	48 pcs
Notice:1.The specification based on the following conditions: DB/WB 20℃/15℃, Water temperature from 15℃ to 55℃, Applicable ambient temperature -7~43ºC. 2.Models and parameters are subject to change due to product upgrades and improvements without prior notice. The specific parameters are subject to the nameplate of the unit.

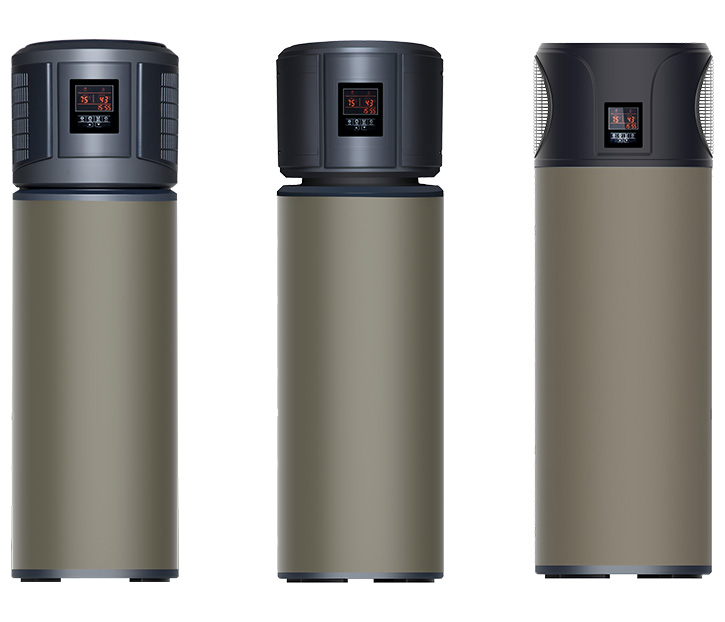

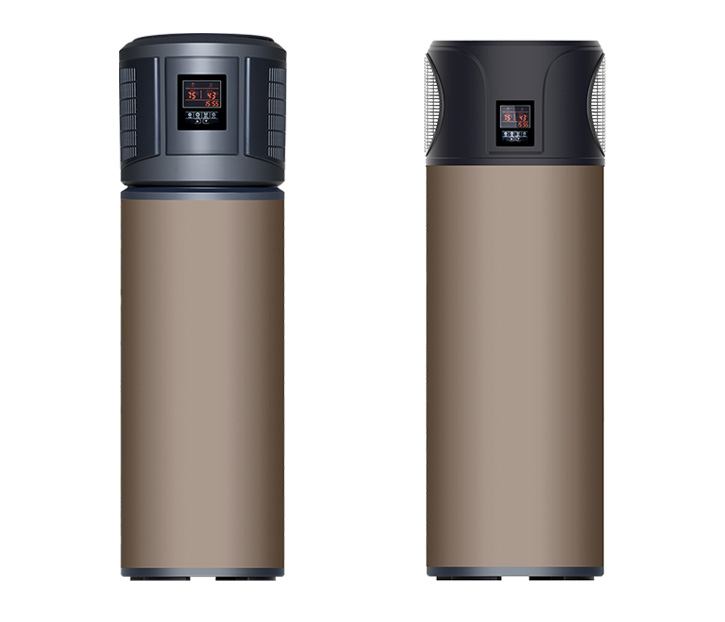

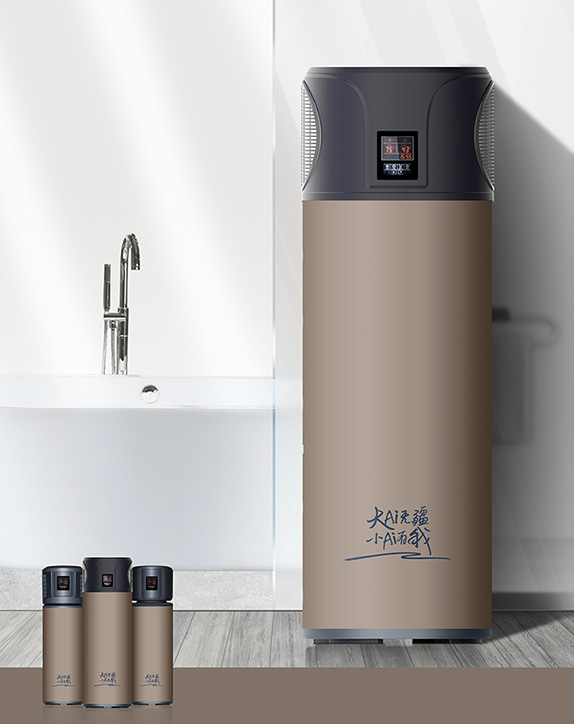

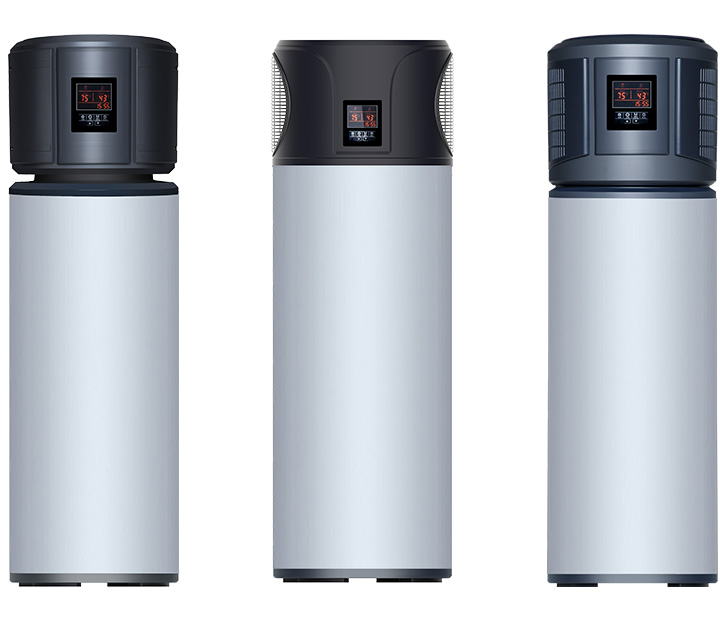

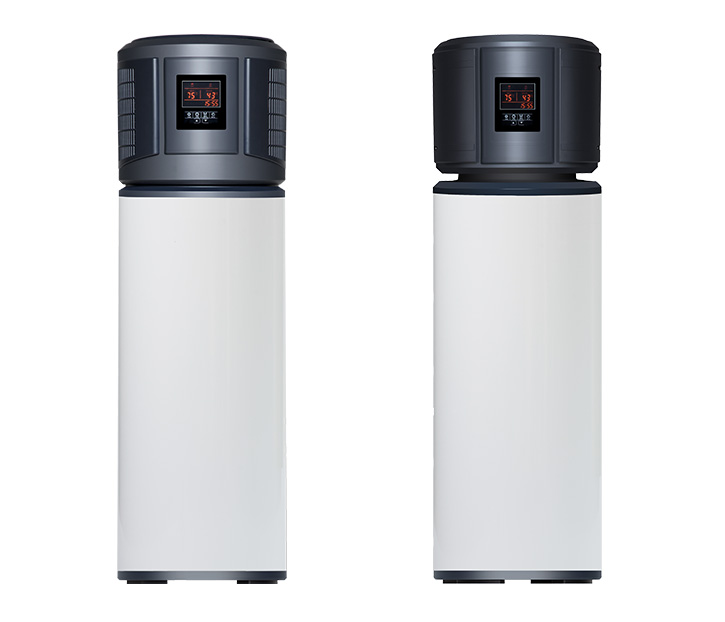

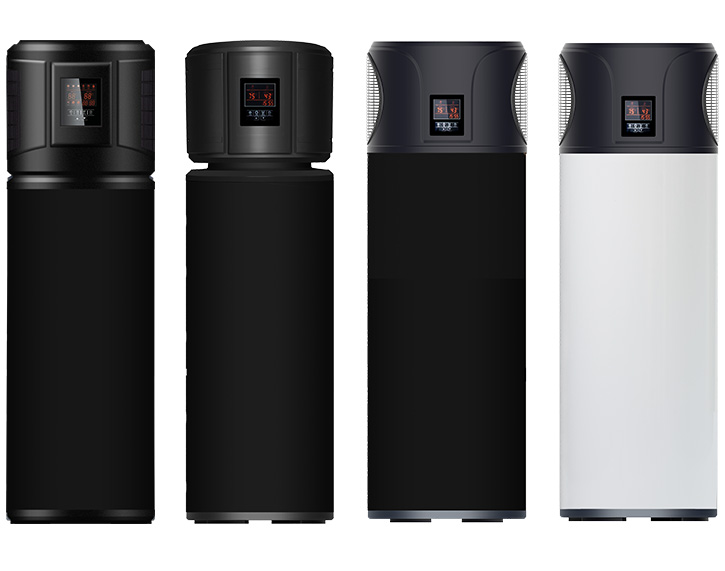

Forlssman All In One Heat Pump Water Heater （Top Blow)

Please take note the heat pump is Fragile, Keep Upright and not to be laid flat, Keep dry. Do not crush, Do handle with care all the time, otherwise the heat pump will be damaged.
