Description：

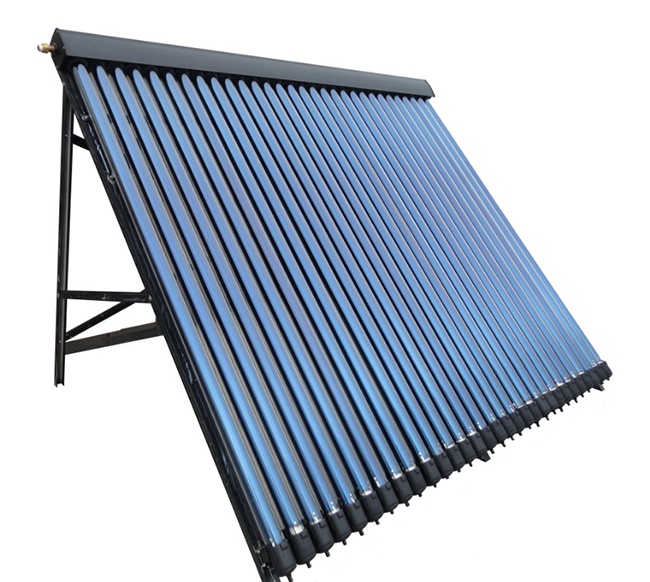

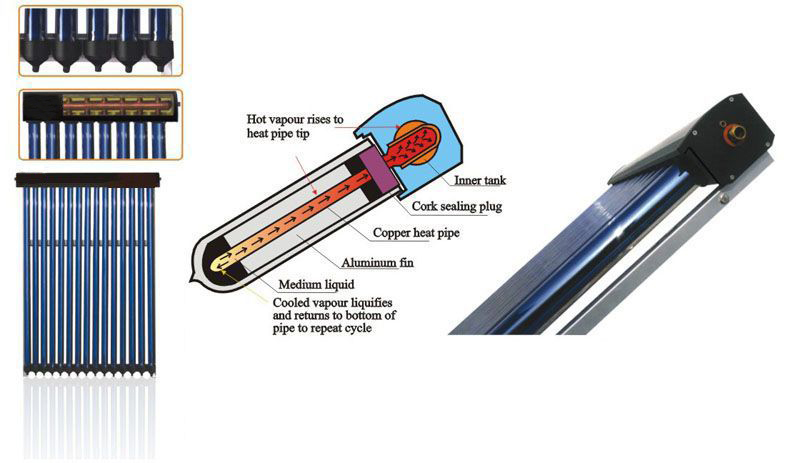

Heat pipe solar collector working theory
Basic principle:

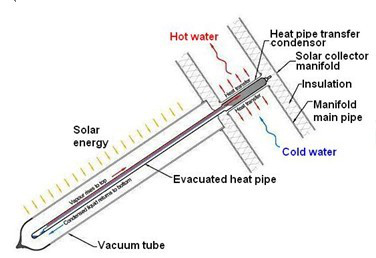

Vacuum tube absorb solar energy and transfer to heat pipe via aluminum fin, heat pipe is heated and working liquid vaporize and rise to the top heat pipe condenser (condenser is inserted into the manifold port inside the solar collector manifold), when the heat pipe condenser meet cold water flow inside the manifold port, the working liquid will cool down and fluidify return to the bottom of heat pipe, so once and once again repeat this process, so finally cold water(glycol) inside the manifold port will be heated.
Solar Collector Specification:
|
Solar Collector Specifications
|
|
Manifold Casing Material
|
2.0mm Aluminum Alloy
|
|
Frame Material
|
2.5mm Aluminum alloy / Stainless Steel
|
|
Header Pipe Material
|
99.93% pure copper , Diameter 14mm
|
|
Insulation
|
Compressed Rock Wool
|
|
Rubber Seals and Rings
|
HTV grade silicone rubber
|
|
Flat roof installation angle
|
15o -----75o
|
|
Maximum Operating Pressure
|
10 bars
|
|
Optimal flow rate
|
0.1L/min/tube
|
|
Model
|
Vacuum tube
|
Daily Output
|
Gross Absorber
|

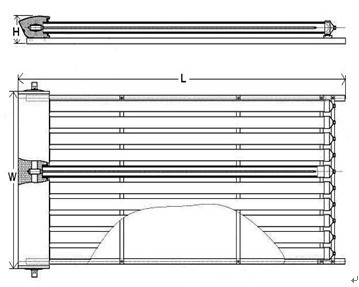

Size (mm)
|
|
(L/Day/60°C)
|
Area( M2)
|
L
|
W
|
H
|
|
SP-S58/1800-10
|
Ø 58x1800*10Pcs
|
90
|
1.85
|
2000
|
960
|
180
|
|
SP-S58/1800-15
|
Ø 58x1800*15Pcs
|
135
|
2.75
|
2000
|
1360
|
180
|
|
SP-S58/1800-18
|
Ø 58x1800*18Pcs
|
160
|
3.30
|
2000
|
1600
|
180
|
|
SP-S58/1800-20
|
Ø 58x1800*20Pcs
|
180
|
3.50
|
2000
|
1760
|
180
|
|
SP-S58/1800-22
|
Ø 58x1800*22Pcs
|
200
|
4.20
|
2000
|
1920
|
180
|
|
SP-S58/1800-24
|
Ø 58x1800*24Pcs
|
215
|
4.20
|
2000
|
2080
|
180
|
|
SP-S58/1800-25
|
Ø 58x1800*25Pcs
|
225
|
4.25
|
2000
|
2160
|
180
|
|
SP-S58/1800-30
|
Ø 58x1800*30Pcs
|
270
|
5.10
|
2000
|
2560
|
180
|
(The above data for reference only )
