Flat Panel Solar Collector

Features:

The Highest Efficiency Blue Selective Coating on full aluminium plate or full copper plate, absorptivity up to 95% (± 2%), and emissivity as low as 5% (±2%).

Patented special bending design frameand unique sealing structure provides robust construction, absolute tightness and retain heat efficiently.

Full back embossed aluminium plate features both high aesthetics and anti-corrosion.

Low-iron tempered textured glass provides excellent strength, anti-glare surface with92%solar transmittance.

Best performance coating - Tinox guarantees best quality Blue Selective Flat Plate Solar Collector, to help you win more high- end customers.

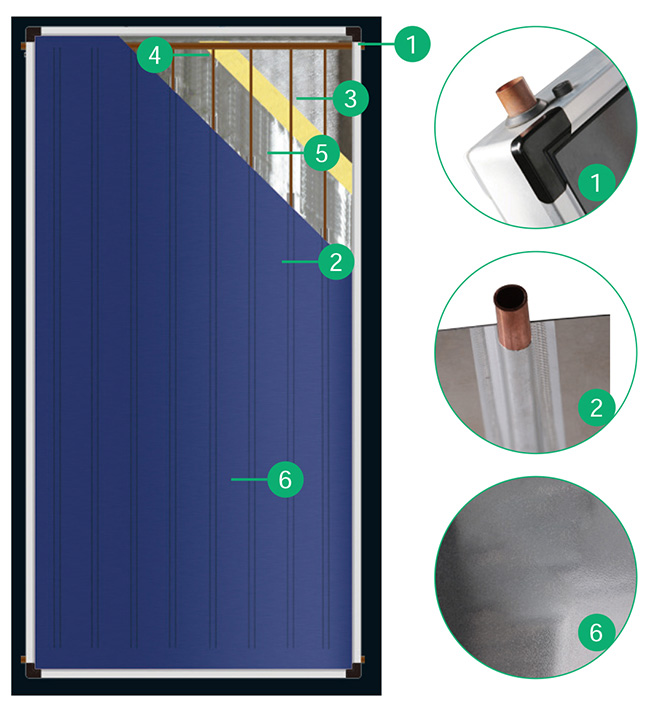

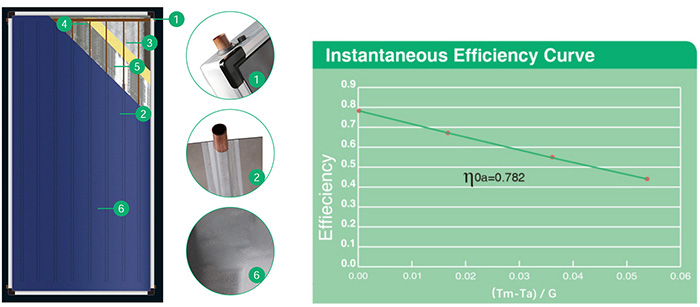

1.Special bending design extrusion aluminium frame. (Coventional 45° combined frame optional.)

2.Package ultrasonic welding absorber allows 360° heat transfer.

3. Embossed aluminium back plate.

4. C12200 copper riser tube and header tube.

5. Full aluminium foil packed high density fiber glass insulation layer.

6. 3.2 mm thickness low-iron tempered textured glass cover.

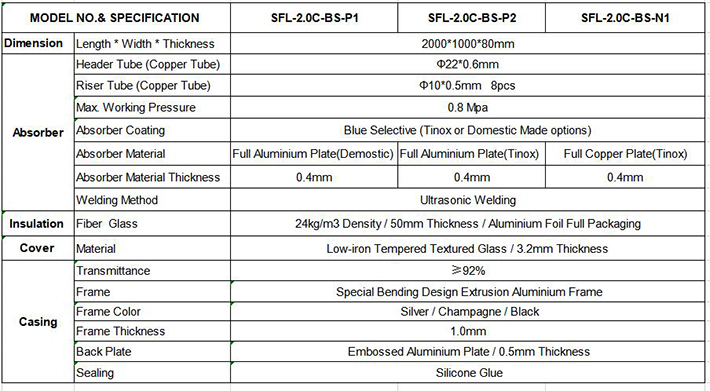

Technical  Data：
