Description

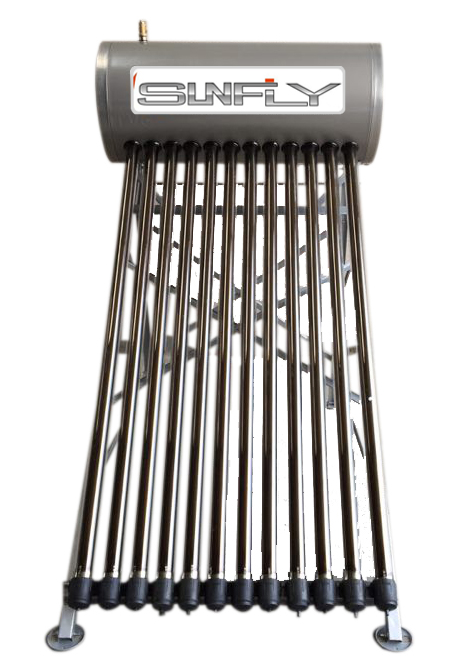

Compact Pressure Solar Water Heater
Feature:
◆Highly efficient absorber of high performance with daily average efficiency over 50%;

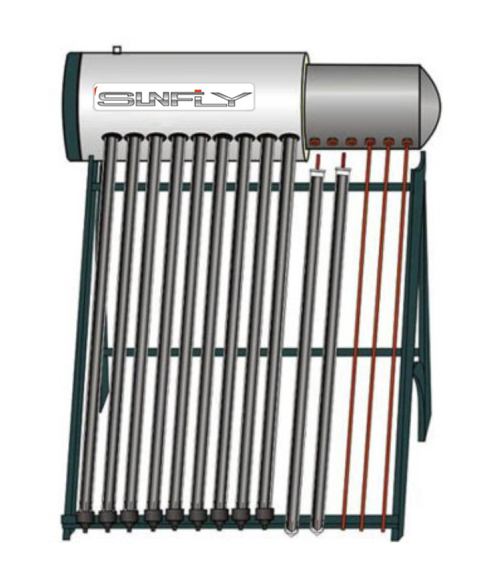

◆Start up quickly, heat pipe transfer the heat energy into the storage tank in one direction.
◆Withstand pressure of 6 Bar, can be connected directly with city water.
◆No water inside the evacuated tubes; the solar water heater can still in service even with several tubes breakage;
◆Highly efficient insulation with polyurethane foam;
◆Simple structure, easy to assembly and install, diffuse flat plate reflector can be assembled easily with its module structure;
◆Can be used all year round in the cold climate;
◆Can be used together with Auxiliary electric boost;
◆Long service life, can be used as long as 15 years.
Specifications:

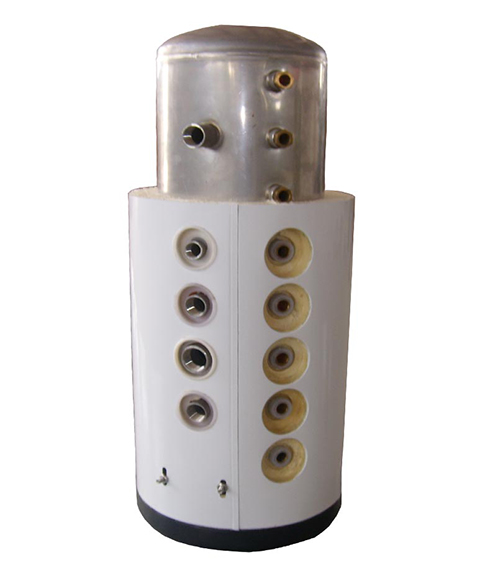

◆Material of storage tank
◆Outer tank: Colorful Steel / Stainless Steel, 0.4mm thickness
◆Inner Tank: SUS304/316 L, 1.5 mm thickness
◆thick Insulation Polyurethane foam, 50 mm
◆working pressure: 6Bar
◆Daily efficiency: ≥55% (≥42% in winter)
◆working temperature :60°C ~ -35°C
◆vacuum tube specifications: 58mm*1800mm
◆lifetime:15 years
◆inlet/outlet：3/4″
|
Model
|
Vacuum tube
|
Daily Output
|
Absorber
|
Tank
|

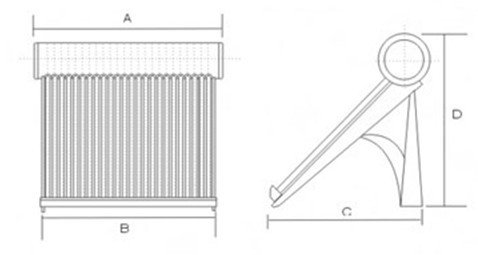

Size (mm)
|
|
(L/Day/60°C)
|
Area( M2)
|
Capacity
|
A
|
B
|
C
|
D
|
|
SFL-CP58/1800-10
|
Ø 58x1800*10Pcs
|
100 L
|
1.85
|
100 L
|
1010
|
810
|
1550
|
1720
|
|
SFL-CP58/1800-15
|
Ø 58x1800*15Pcs
|
150 L
|
2.75
|
150 L
|
1385
|
1185
|
1550
|
1720
|
|
SFL-CP58/1800-18
|
Ø 58x1800*18Pcs
|
180 L
|
3.30
|
180 L
|
1610
|
1410
|
1550
|
1720
|
|
SFL-CP58/1800-20
|
Ø 58x1800*20Pcs
|
200 L
|
3.50
|
200 L
|
1760
|
1560
|
1550
|
1720
|
|
SFL-CP58/1800-25
|
Ø 58x1800*25Pcs
|
250 L
|
4.20
|
250 L
|
2135
|
1935
|
1550
|
1720
|
|
SFL-CP58/1800-30
|
Ø 58x1800*30Pcs
|
300 L
|
5.10
|
300 L
|
2510
|
2310
|
1550
|
1720
|
(The data are for reference only)
