Compact Pressure Solar Water Heater

Outstanding Features:

●Highly efficient absorber of high performance with daily average efficiency over 50%;
●Start up quickly, heat pipe transfer the heat energy into the storage tank in one direction.
●No water media inside the evacuated tubes; the solar water heater can still in service even   with several tubes breakage;
●Highly efficient insulation with polyurethane foam;
●Simple structure, easy to assembly and install

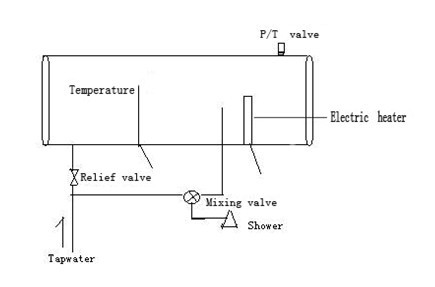

●Optional Assistant Electric Heating Available

●Long Designed Operation Life :15 Years

Absorption Efficiency :  0.75

Emittance Efficiency :   1.5W/㎡ K

Tank Pressurized: 1.2 Mpa

Operation Pressure: 0.6 Mpa

Distance Between Tubes: 7.5 cm

Insulation Layer: Polyurethane and Aluminium Silicate

Maximum Temperature: 99℃

Tank Material:

Inner of the tank : 1.2 mm thickness Stainless Steel 304 2B

Outer of the tank:  0.4 mm thickness Galvanized Steel

Frame: Aluminium Alloy 6063-T5

Diameter of the outer tank : 490mm
