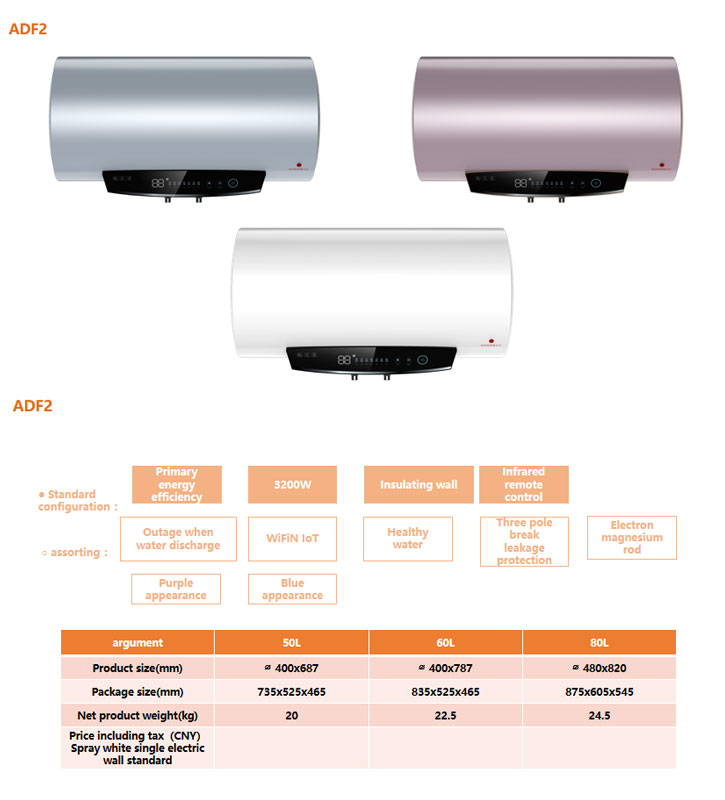

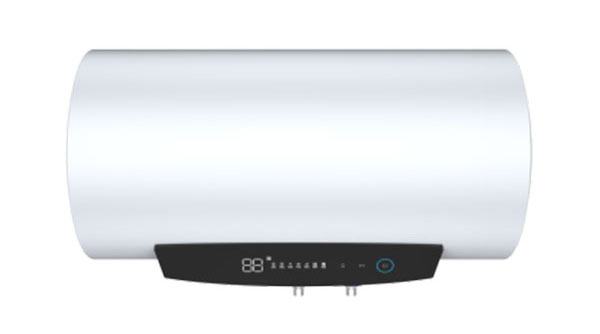

ADF2

ADF2
Description:
Number Product sketch Customer model Factory model Product size
（mm） 		Rack spacing
(mm) 		Package size
（mm） 		Net weight
(KG) 		Gross weight
(KG)
1
ADD13-40D φ380x598 210 505x446x650 Half wing box 14 16
2 ADD13-50D φ380x698 310 505x446x750 Half wing box 16 18
3
Number Product sketch Customer model Factory model Product size
（mm） 		Rack spacing
(mm) 		Package size
（mm） 		Net weight
(KG) 		Gross weight
(KG)
1
ADF2-50D φ400x687 310 525x465x735 Half wing box 17 19.5
2 ADF2-60D φ400x787 422 525x465x835 Half wing box 18.5 21
3 ADF2-80D φ480x755 297 605x545x815 Half wing box 21.5 24.5
4
5
Product configuration table
Rated capacity(L） （50、60、80）L Control mode ☐Mechanical control☑computer control（☐machine control ☐ infrared remote control ☐WiFi ）
Rated power 3200W Heating pipe specification material Stainless steel   ☑single group (power) ☐ double group (power)
Rated voltage 220V～ Temperature display type  ☑ computer temperature control digital display ☐ mechanical temperature control digital display ☐Mechanical temperature control water temperature indicator
Rated frequency 50Hz Temperature display backlight color  ☑ white light ☐ orange
Rated stress ☑0.8MPa       ☐0.75MPa      ☐0.7MPa Liner specification material ☑Single gall enamel ☐ double gall enamel
Waterproof class TPX4 Properties of insulation layer Foam thickness  30   mm
Temperature control range ☑30-75℃     ☐30-80℃ Leakage protection device ☐three pole break + electric wall    ☑Optical plug + anti-electric wall    ☐single three-pole break
Thermal circuit breaker set temperature ☑93℃          ☐105℃ Power cable specifications ☑3*1.5mm2/16A   ☐3*1.0mm2/10A  ☐3*2.5mm2 Without plug
Thermal circuit breaker type ☐Swelling type  ☑bouncy Total length of power cord 1.2m（Plug included）
Energy efficiency class ☐A+class   ☑1class  ☐2class   ☐3class  ☐other class Inner bladder anti-corrosion device Magnesium rod
Hot water output rate 50-60L：80%；80L：70% Appearance of the end cover ☐Inner buckle flat end cover         ☑Inner buckle convex end cover
Installation mode ☑horizontal type         ☐Vertical type Housing material color Brilliant white
Sewage outlet configuration ☐Running water valve drain port   ☑Ordinary independent sewage outlet   ☐No independent sewage outlet End cover material color Brilliant white
Pressure relief valve parameters label0.8Mpa，Face seal with gasket Control box material color Black
Logo/Pattern ☑Screen printing           ☐ labeling                ☐other Carton parameter ☑1.0kPa5.0kN/m   ☐1.3kPa5.5kN/m  ☐1.38kPa7.0kN/m
Random attachment ☑Safety valve  ☑Safety valve drainage tube  ☑Expansion bolt with hook ☑Expansion screw hook sheath ☑Small expansion screws  ☐silicone sealing ring  ☑Filter seal ring  ☐ running water drain pipe  ☐Handle of running water blowdown valve  ☑Instructions  ☐remote control  ☐Mixing valve + shower head  ☐ Other:
Product function introduction Basic configuration: enamel inner tank, front knob mechanical temperature control, water temperature indicator inner tank temperature, heating lamp indicator, 2200W single power, independent sewage outlet, built-in anti-electric wall; Protection against overpressure/overtemperature/dry burning.
Optional configuration
Product execution standard GB4706.1-1998、GB4706.12-2006、GB21519-2008

ADD13-60D 		φ380x798 422 505x446x850 Half wing box 18 20
4 ADD13-80D φ460x775 297 595x535x835 Half wing box 20.5 25
5
Product configuration table
Rated capacity(L） （40、50、60、80）L Control mode ☐Mechanical control ☑computer control（☑machine control ☑ infrared remote control ☐WiFi ）
Rated power 4200W Heating pipe specification material Stainless steel   ☑single group (power) ☐ double group (power)
Rated voltage 220V～ Temperature display type ☑ computer temperature control digital display ☐ mechanical temperature control digital display ☐Mechanical temperature control water temperature indicator
Rated frequency 50Hz Temperature display backlight color ☑ white light
Rated stress ☐0.8MPa       ☑0.75MPa      ☐0.7MPa Liner specification material ☑Single gall enamel ☐ double gall enamel
Waterproof class IPX4 Properties of insulation layer Foam thickness  20   mm
Temperature control range ☑30-75℃     ☐30-80℃ Leakage protection device ☐three pole break + electric wall    ☑Optical plug + anti-electric wall    ☐single three-pole break
Thermal circuit breaker set temperature ☑93℃          ☐105℃ Power cable specifications ☑3*1.5mm2/16A   ☐3*1.0mm2/10A  ☐3*2.5mm2 Without plug
Thermal circuit breaker type ☐Swelling type  ☑bouncy Total length of power cord 1.2m（Plug included）
Energy efficiency class ☐A+class   ☐1class   ☑2class   ☐3class  ☐other class Inner bladder anti-corrosion device Magnesium rod
Hot water output rate 40-60L：80%；80L：70% Appearance of the end cover ☐Inner buckle flat end cover         ☑Inner buckle convex end cover
Installation mode ☑horizontal type         ☐Vertical type Housing material color Brilliant white
Sewage outlet configuration ☐Running water valve drain port   ☑Ordinary independent sewage outlet   ☐No independent sewage    outlet End cover material color Brilliant white
Pressure relief valve parameters label0.8Mpa，Face seal with gasket Control box material color Brilliant white
Logo/Pattern ☑Screen printing           ☐ labeling                ☐other Carton parameter ☑1.0kPa5.0kN/m   ☐1.3kPa5.5kN/m  ☐1.38kPa7.0kN/m
Random attachment ☑Safety valve  ☑Safety valve drainage tube  ☑Expansion bolt with hook ☑Expansion screw hook sheath ☑Small expansion screws  ☐silicone sealing ring  ☑Filter seal ring  ☐ running water drain pipe  ☐Handle of running water blowdown valve  ☑Instructions ☑remote control  ☐Mixing valve + shower head  ☐ Other:
Product function introduction Basic configuration: enamel inner tank, front knob mechanical temperature control, water temperature indicator inner tank temperature, heating lamp indicator, 2200W single power, independent sewage outlet, built-in anti-electric wall; Protection against overpressure/overtemperature/dry burning.
Optional configuration
Product execution standard GB4706.1-1998、GB4706.12-2006、GB21519-2008
