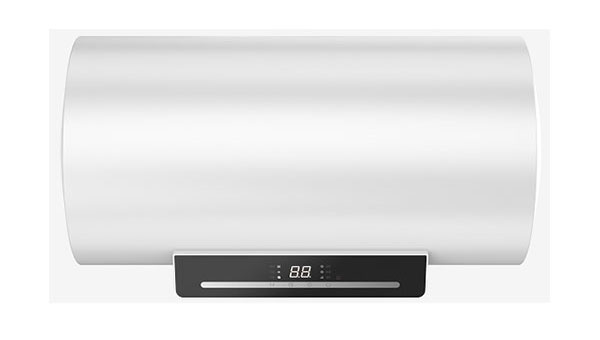

| Number | Product sketch | Customer model | Factory model |
Product size （mm） |
Rack spacing (mm) |
Package size （mm） |
Net weight (KG) |
Gross weight (KG) |
|
| 1 |
 |

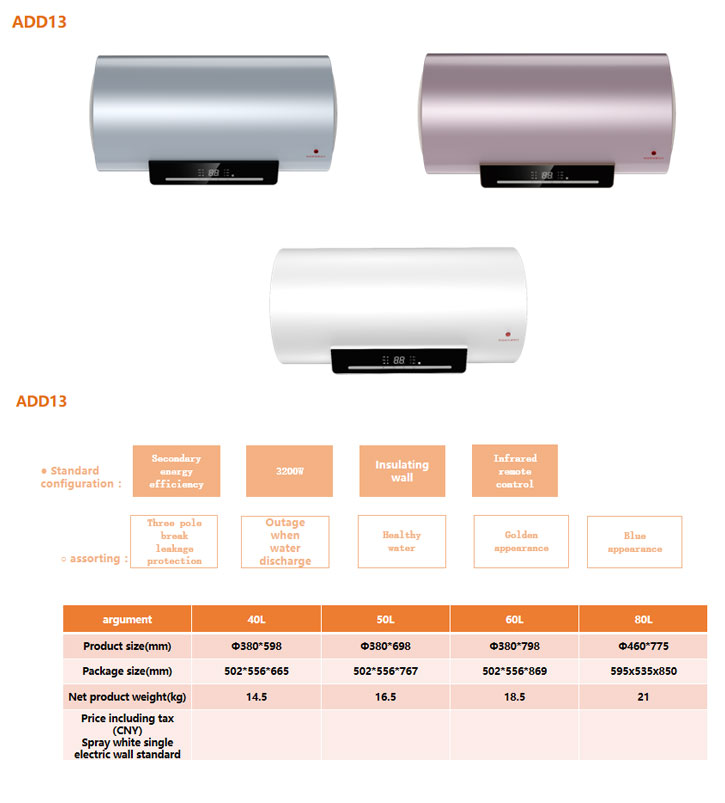

ADD13-40D | φ380x598 | 210 | 505x446x650 Half wing box | 14 | 16 | ||
| 2 | ADD13-50D | φ380x698 | 310 | 505x446x750 Half wing box | 16 | 18 | |||
| 3 | ADD13-60D | φ380x798 | 422 | 505x446x850 Half wing box | 18 | 20 | |||
| 4 | ADD13-80D | φ460x775 | 297 | 595x535x835 Half wing box | 20.5 | 25 | |||
| 5 | |||||||||
| Product configuration table | |||||||||
| Rated capacity(L） | （40、50、60、80）L | Control mode | ☐Mechanical control ☑computer control（☑machine control ☑ infrared remote control ☐WiFi ） | ||||||
| Rated power | 4200W | Heating pipe specification material | Stainless steel ☑single group (power) ☐ double group (power) | ||||||
| Rated voltage | 220V～ | Temperature display type | ☑ computer temperature control digital display ☐ mechanical temperature control digital display ☐Mechanical temperature control water temperature indicator | ||||||
| Rated frequency | 50Hz | Temperature display backlight color | ☑ white light | ||||||
| Rated stress | ☐0.8MPa ☑0.75MPa ☐0.7MPa | Liner specification material | ☑Single gall enamel ☐ double gall enamel | ||||||
| Waterproof class | IPX4 | Properties of insulation layer | Foam thickness 20 mm | ||||||
| Temperature control range | ☑30-75℃ ☐30-80℃ | Leakage protection device | ☐three pole break + electric wall ☑Optical plug + anti-electric wall ☐single three-pole break | ||||||
| Thermal circuit breaker set temperature | ☑93℃ ☐105℃ | Power cable specifications | ☑3*1.5mm2/16A ☐3*1.0mm2/10A ☐3*2.5mm2 Without plug | ||||||
| Thermal circuit breaker type | ☐Swelling type ☑bouncy | Total length of power cord | 1.2m（Plug included） | ||||||
| Energy efficiency class | ☐A+class ☐1class ☑2class ☐3class ☐other class | Inner bladder anti-corrosion device | Magnesium rod | ||||||
| Hot water output rate | 40-60L：80%；80L：70% | Appearance of the end cover | ☐Inner buckle flat end cover ☑Inner buckle convex end cover | ||||||
| Installation mode | ☑horizontal type ☐Vertical type | Housing material color | Brilliant white | ||||||
| Sewage outlet configuration | ☐Running water valve drain port ☑Ordinary independent sewage outlet ☐No independent sewage outlet | End cover material color | Brilliant white | ||||||
| Pressure relief valve parameters | label0.8Mpa，Face seal with gasket | Control box material color | Brilliant white | ||||||
| Logo/Pattern | ☑Screen printing ☐ labeling ☐other | Carton parameter | ☑1.0kPa5.0kN/m ☐1.3kPa5.5kN/m ☐1.38kPa7.0kN/m | ||||||
| Random attachment | ☑Safety valve ☑Safety valve drainage tube ☑Expansion bolt with hook ☑Expansion screw hook sheath ☑Small expansion screws ☐silicone sealing ring ☑Filter seal ring ☐ running water drain pipe ☐Handle of running water blowdown valve ☑Instructions ☑remote control ☐Mixing valve + shower head ☐ Other: | ||||||||

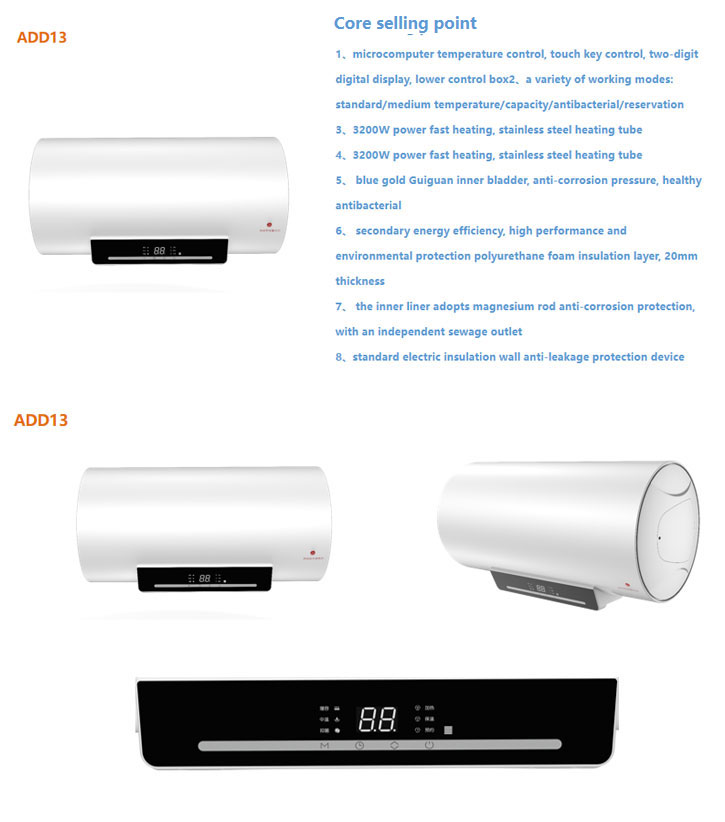

| Product function introduction | Basic configuration: enamel inner tank, front knob mechanical temperature control, water temperature indicator inner tank temperature, heating lamp indicator, 2200W single power, independent sewage outlet, built-in anti-electric wall; Protection against overpressure/overtemperature/dry burning. | ||||||||
| Optional configuration | |||||||||
| Product execution standard | GB4706.1-1998、GB4706.12-2006、GB21519-2008 | ||||||||
| Feedback | |
 |
|
Certification The company has passed ISO9001 : 2008 quality management system certification. |
|
